The Japanese Yatate
Written by Russ Stutler
August, 2003

If someone were to bring up the topic of Japanese antiques, what images would come to your mind? Kimono? Swords? Armor? Possibly netsuke? A few might even know what an inro is. How about the yatate?

I have conducted informal surveys among my Japanese acquaintances here in Tokyo, and was surprised that the average Japanese does not even know what a yatate is!

A yatate (pronounced yah-tah-teh) is a Japanese portable writing set. The yatate has been around since the Kamakura period (1185-1333). It contains a traditional Japanese bamboo brush and an ink pot filled with cotton which holds liquid sumi ink.

Yatate literally means "arrow stand."

Ink stick, grinding stone and bamboo brushes

The Japanese traditional way of writing is with a brush (fude) and ink (sumi). Before the invention of the yatate, whenever anyone wanted to write or draw in ink, he had to make his own ink by grinding the ink stick in water on the grinding stone (suzuri). This method has been used for many centuries, and is still being used today.

Warriors (samurai) often had to write letters and reports from the field, and so carried a small grinding stone in a small drawer at the bottom of their quiver along with the arrows.

This grinding stone became known as the "yatate no suzuri" (arrow stand's grinding stone). Eventually it was simply called "yatate."

It was burdensome to have to pull out the grinding stone, ink stick, and water container every time one needed to write, but in those days before spill-proof containers, carrying liquid sumi ink could lead to disasters, especially on the battle field.

Then sometime during the Kamakura era (1185-1333 ) someone came up with the clever idea of saturating a piece of cotton in liquid ink. This could be carried about in a simple container without any worry of spills.

A truly portable writing set was finally born. Now one could quickly dash off a letter by just sliding open the lid and pressing the brush into the cotton.

These new writing sets were made in the shape of a folded fan (hiogi-gata) which contained both the ink soaked cotton and brush.

Warriors continued to carry these in the quiver with the arrows, so they were also called yatate just like the grinding stones they replaced.

These new writing sets were very convenient, but the ink capacity was rather small in this slim, compact design. As the yatate grew in popularity, the demand for larger ink containers brought about a change in its shape.

By the time the Edo era had arrived (1603-1867) almost all were shaped like a dipper (hishaku-gata) with a tube-like container for the brush, and a hinged ink pot (sumi tsubo).

Originally used exclusively by the Samurai, the yatate became very popular with merchants, scholars, and the common folk.

From a wood block print by Suzuki Harunobu
National Library in Paris.
They were no longer carried in military quivers, but were hung from the kimono waist sash (obi). Still, they retained the name yatate, although they were no longer associated with arrows.

Although most people hung the yatate from their waist sash (obi) by a cord with an ornamental button (netsuke) which kept the cord from slipping, some people simply tucked the yatate in their obi for quick use.

The yatate was a part of daily life. Not only was the yatate an extremely useful invention, it was also a fashionable accessory, and could be seen proudly hanging from waists all over Japan.

Since only the samurai were allowed to carry swords, it is said that many men preferred a big heavy yatate in case they needed a handy weapon.

Other items often seen hanging from obi included pipe (kiseru) and tobacco holders and small cases (inro) for carrying seals, medicine and small objects.

For those who went on journeys, the yatate was an indispensible piece of equipment for sending word to their families that they were safe, and for writing in their travel journals. Many masterpieces of literature from the Edo era owe their existence to the yatate. Traveling artists were able to fill their sketchbooks with on-the-spot drawings thanks to the yatate.

Although the dipper shape was practically the only yatate style for centuries, there were as many variations in design and decoration as there were craftsmen producing them.

The yatate was perfect for writing quick graffiti without getting caught!
(From a Hokusai wood block print)

Some had extra compartments for carrying small knives, tweezers, and slim folding rulers.

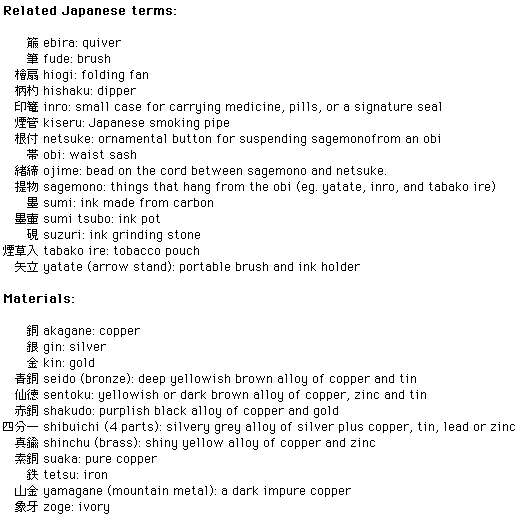

A variety of materials were used to create the yatate such as copper, brass, gold, silver, iron, shibuichi, sentoku, shakudo, ivory, bamboo, rattan, and chinaware. Decorations included mother of pearl or ivory inlays and maki-e (gold sprinkled into urushi lacquer).

During the middle of the Edo era, there was a ban on luxurious homes and clothing in Japan, so those who had the money to afford luxury would enjoy it in the form of a fancy yatate which was not covered by the ban.

Craftsmen continued to experiment with new designs, and it was not uncommon to find a yatate that resembled a short sword or an arrow.

Near the end of the Edo era, a new style of yatate appeared with separate brush and ink containers connected by a cord or chain (inro-gata). One could insert the tube shaped brush holder in the obi and let the ink pot hang loose like an inro. This style became fashionable for a short time, but eventually the one-piece dipper shape returned as the prevalent style.

Even after new styles came along, the older styles remained popular, so it is not possible to determine the date of a yatate based on the shape alone.

By this time many craftsmen stopped using brass for yatate production and began using an alloy of copper and gold called "shakudo". Shakudo is a Japanese invention, and has no English equivalent term. New shakudo looks just like copper, but over time the surface turns a beautiful dark purple color, almost black. This is due to the addition of gold. Regular copper would turn green. The coloration, or patina, will come off if you rub it enough, but since shakudo was created with this beautiful patina in mind, it's best left as it is, in its patinated state.

In the early 20th century, an new invention, the fountain pen was imported from the west, causing many Japanese to abandon the yatate.

However some people continued to prefer them over their western counterparts.

Kokichi Mikimoto
One notable example was Kokichi Mikimoto (1858-1954) the founder of Mikimoto Pearls who was said to have favored the yatate over the fountain pen, saying "It has the spirit of the merchant." He carried one on his obi wherever he went.

Although some of the early fountain pens had very flexible gold nibs, none could compare with the expressiveness and line variation of a brush, especially for drawing, as well as writing Japanese characters.

Even today the yatate is popular with artists as well as brush calligraphers. American watercolorist Fred Harris who is renown for his Japanese sumi ink painting always carries a sketchpad and yatate as he searches for new subjects in Japan. For those who enjoy sketching outdoors, nothing compares with the yatate for versatility and portability, not to mention the "cool" factor of having a hundred years or more of history attached to your writing set.

The fountain pen as we know it has been around for a little over a hundred years, but before that the yatate was widely used as the only portable writing system in Japan for some seven hundred years.

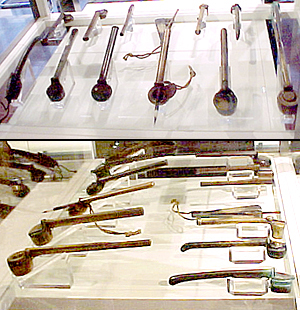

Yatate exhibit at the Pilot Pen Station (pen museum) in Tokyo
These days you will rarely find a yatate hanging from kimono sashes, but modern artists still do keep them in the pocket of their jeans, or in their bag, ready to pull out for a quick sketch. It is still possible to hang one from your belt if you want to get a reaction from folks around you.

I have done sketches with my yatate of people on the subway. The slim bamboo brush allows for much better line control than a brush pen, and it also can produce much finer consistent hair lines.

Although the yatate is still being put to good practical use, it has also become popular with collectors all around the world. And as the photo on the left indicates, it also qualifies as a genuine museum piece.

They are becoming increasingly difficult to find in antique stores throughout Japan, and are very rare in the west. Occasionally one can find a yatate on eBay.

Yatate on Television

Samurai dramas known as "jidai geki" or "chambara" have always been popular on Japanese television, and may be compared to cowboy TV westerns in America. Although not usually historically very accurate, they are entertaining.

Here the bad guys tie up the wealthy widow and thrust a yatate in her face, demanding she sign over the Japanese version of the "deed to the ranch."

Scene from The long running television series Mito Komon.

Some yatate photos:

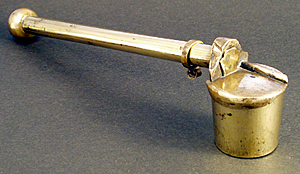

Brass yatate with "kozuchi" and "koban" design on the lid.

Brass yatate with unusual design that defies description.

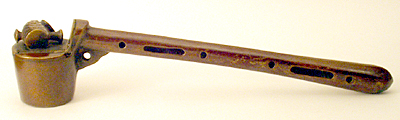

Tiny travel yatate made of copper from the Edo era (1603-1867). It is just over 4 1/2 inces long, weighs 20 grams.

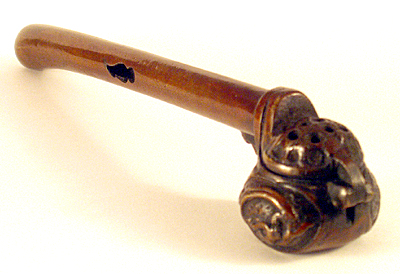

Frightening dragon yatate with long tongue.

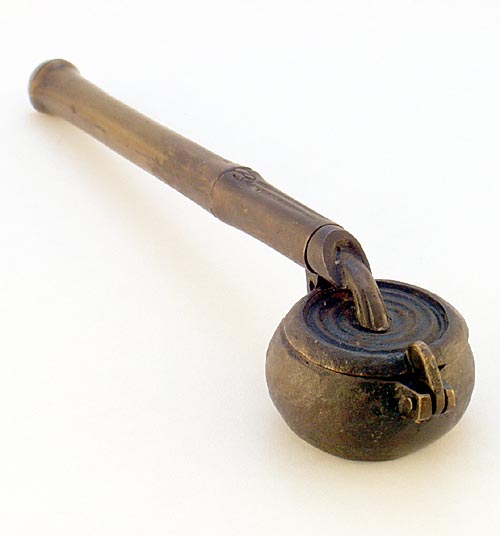

Heavy brass yatate which looks very similar to the one the lady is holding in the wood block print above.

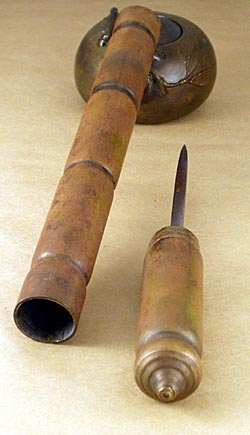

Huge yatate (my thumb will fit in the handle) with hidden knife which made up part of the handle. This was reportedly used by Ninjas, and the knife was for more than just opening letters!

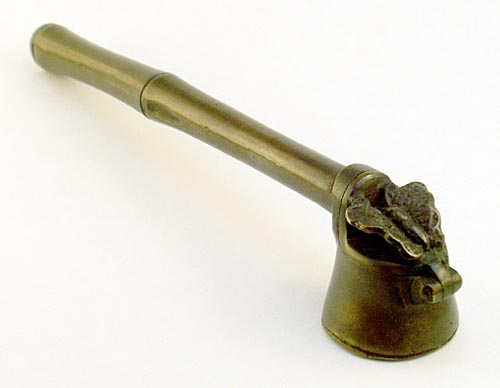

Yatate with butterfly decoration

This yatate resembles a pool of water.

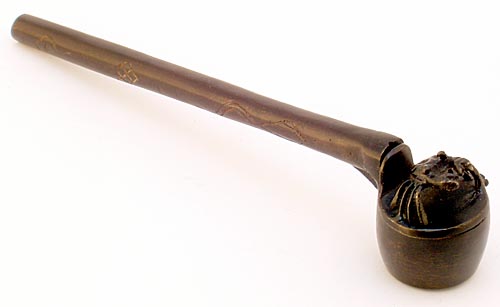

Yatate with crab decoration

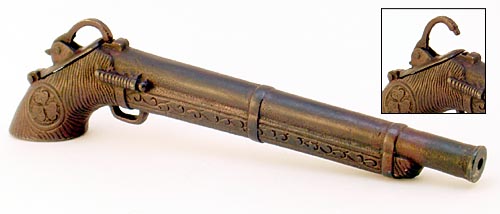

Yatate made in the shape of an Edo-era pistol.
Quite intimidating when tucked in the waist sash!

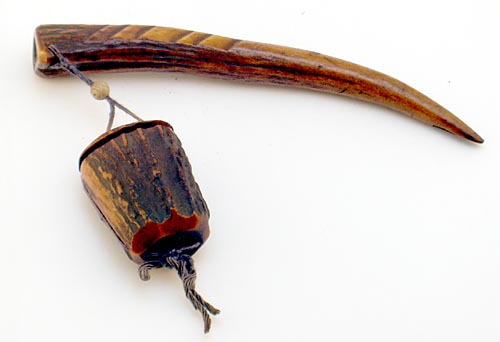

Unusual yatate made of a deer antler

Japanese historical periods since the invention of the yatate:
Kamakura Era 1185-1333
Muromachi Era 1338-1573
Azuchi-Momoyama Era 1573-1603
Edo Era 1603-1867
Meiji Era 1867-1912
Taisho Era 1912-1926
Showa Era 1926-1945
Heisei Era From 1945

The old black and white drawings on this page were taken from woodblock prints done by Hokusai

Regarding the dating (what era) of the yatate examples on this page, I have relied on what the previous owners have told me.
